NEXUS SERIES (PNEUMATIC CLUTCH) POWER PRESSES
- Home
- NEXUS Series

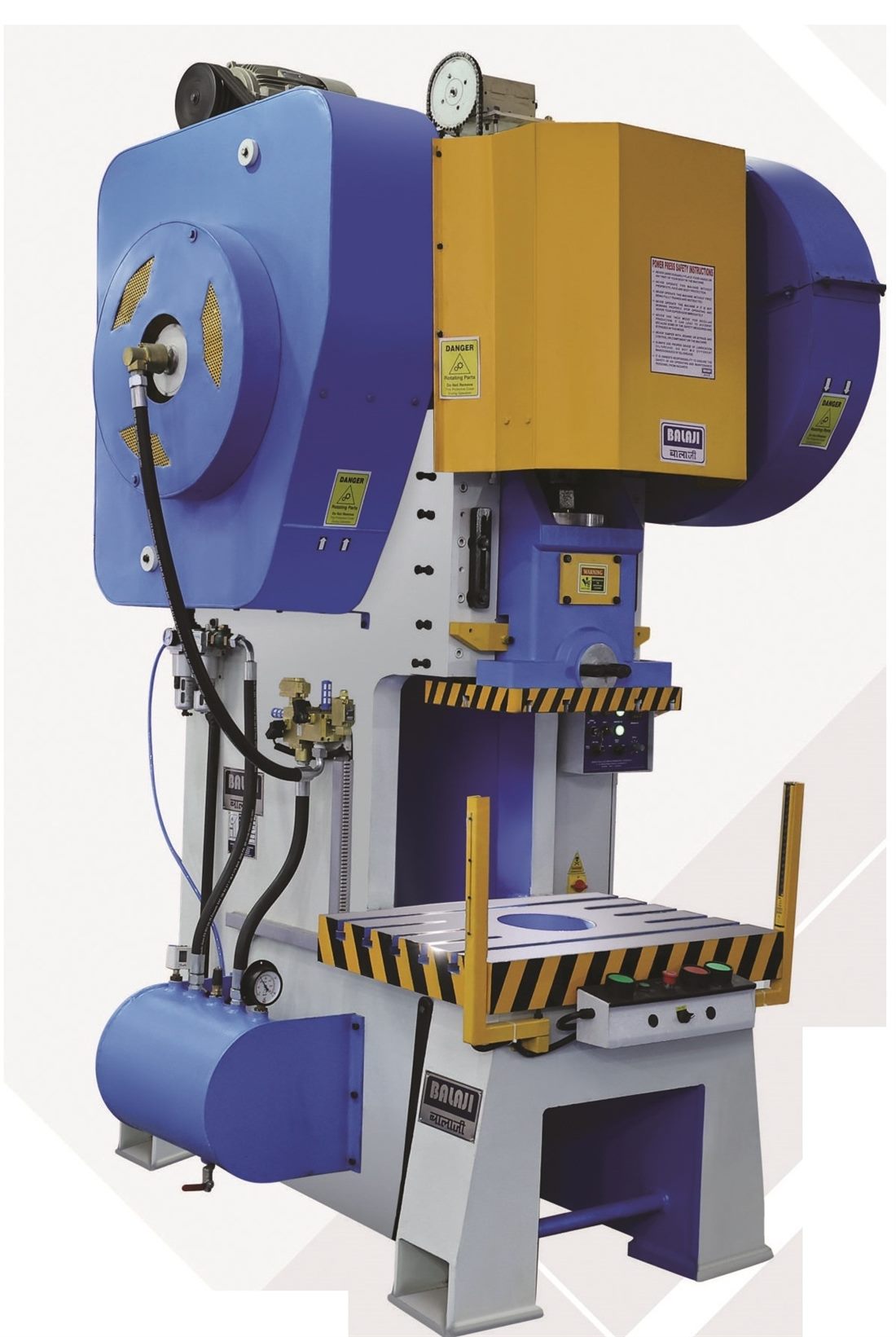

- NX-110 Ton
| Property | Value |
|---|---|
| Capacity | 110 Ton |
| Stroke Length Fixed | 125 mm |
| Speed Fixed (Per Minute) | 50 |
| Speed Variable (Per Minute) | 40–60 |
| Bolster Area (ExF) | 1150 × 650 mm |
| Shut Height / Die Height (DH) | 400 mm |
| Slide Plate Area (PxQ) | 650 × 500 mm |
| Slide Adjustable | 80 mm |
| Tool Bore (Dia × Depth) | Ø60 × 75 mm |
| Main Motor (HP / RPM) | 10 / 1440 |
| Floor To Top Bolster (N) | 900 mm |
| Die Cushion Force (Optional) | 10 Ton |
| Die Cushion Area (Optional) | 400 × 300 mm |
| Die Cushion Stroke (Optional) | 105 mm |
