POWDER COMPACTING PRESS

Standard Accessories

Air Clutch Air Tank FRL Unit Solenoid Valve Router Seal Rotary Cam Limit Switch Electric Panel Electric Panel with remote two hand control system Foot Switch with PVC Channel Wiring Auto Lubrication Device

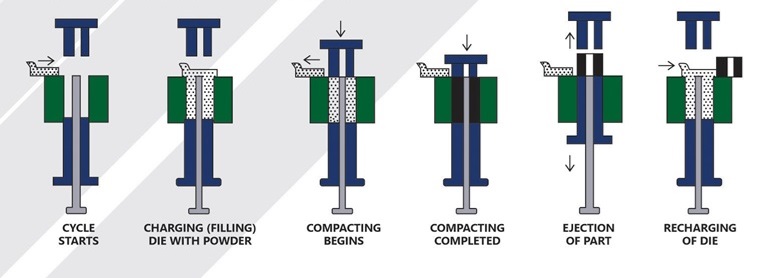

PRESSING CYCLE FOR SINGLE LEVEL PART

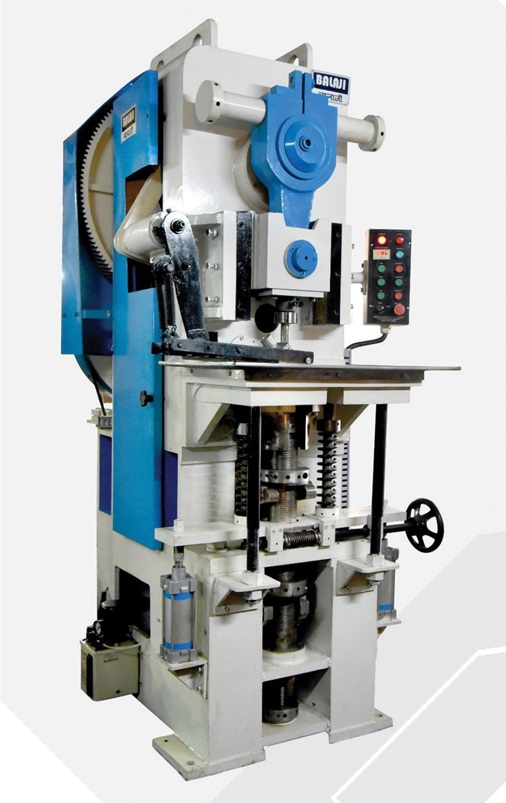

BalaJi make heavy duty steel fabricated geared motorised Powder Compacting Machine fitted with standard make Electric Motor, Panel, Pneumatic Clutch & Brake with 'Start' & 'Off' option, clutch can be set to 'inching' 'continuous' 'single stroke & reversing option, the drum cam can be set to concide with time in delay or advance of feeder in respect to punch movement complete with vee belts, Flexible Pipe Wiring, Auto Lubrication Device, Flywheel and Gear Guards as per required specifications.

Download Catalogue

TECHNICAL SPECIFICATION

VARIANTS	10 Ton	30 Ton	40 Ton
Maximum Pressure From Top	10 Tons	30 Tons	40 Tons
Maximum Pressure From Bottom	7 Tons	21 Tons	28 Tons
Maximum Fill Depth	60 mm	76 mm	100 mm
Maximum Dia of Parts	25 mm	32 mm	40 mm
Top Punch Stroke	70 mm	100 mm	100 mm
Bottom Punch Compression Stroke	0 to 20 mm	20 mm	35 mm
Top Punch Adjustment	0 to 15 mm	35 mm	35 mm
Ejection Stroke	60 mm	76 mm	100 mm
Motor H.P.	5 H.P.	10 H.P.	15 H.P.
No. of Stroke	6 to 20	6 to 30	6 to 30
Height	2000 mm	2250 mm	2525 mm
Width	1200 mm	1500 mm	1650 mm
Depth	1500 mm	2000 mm	2150 mm
