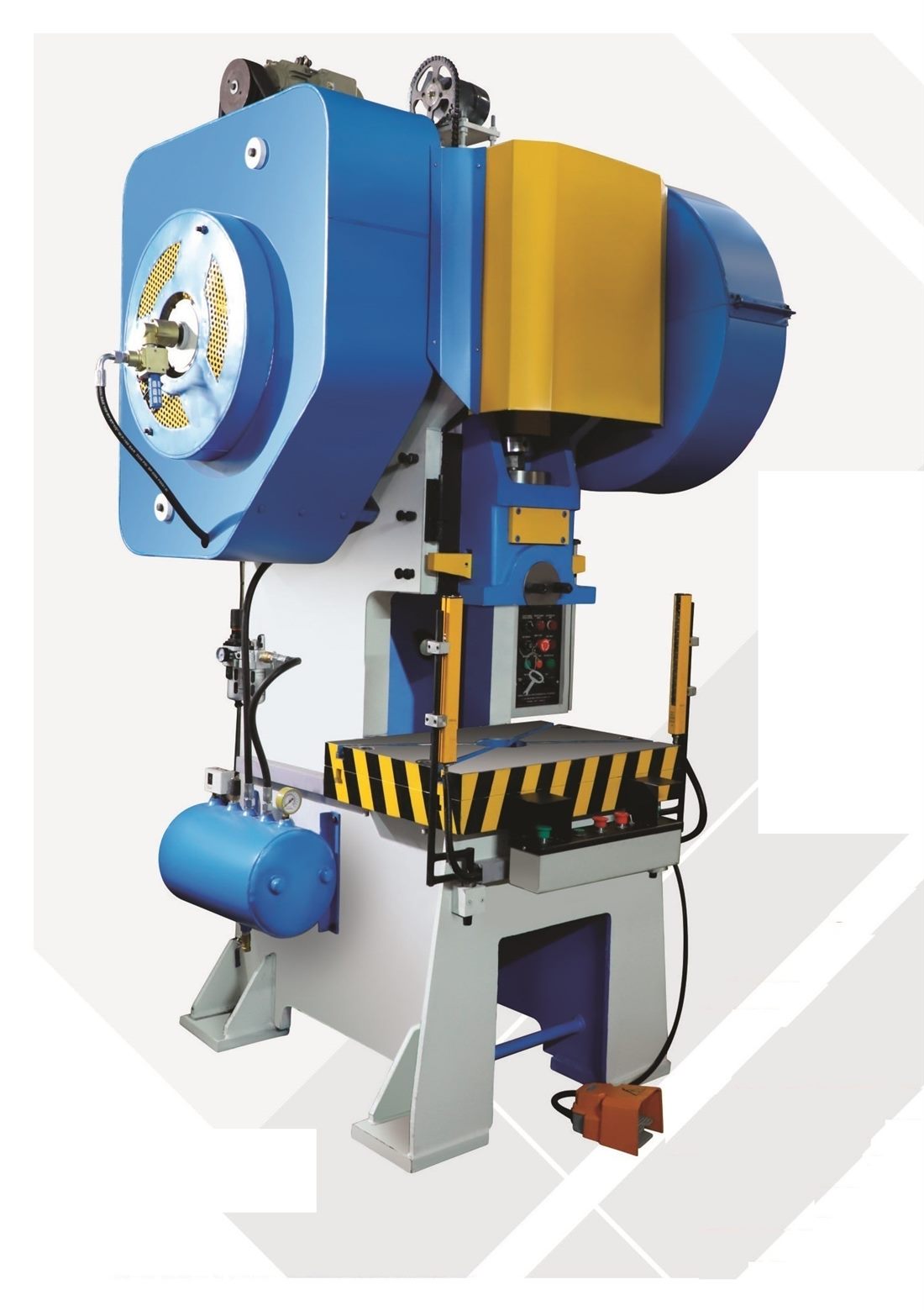

- NX-80 Ton
| Property | Value |
|---|---|
| Capacity | 80 Ton |
| Stroke Length Fixed | 100 mm |
| Speed Fixed (Per Minute) | 50 |
| Speed Variable (Per Minute) | 40–60 |
| Bolster Area (ExF) | 1000 × 550 mm |
| Shut Height / Die Height (DH) | 370 mm |
| Slide Plate Area (PxQ) | 560 × 460 mm |
| Slide Adjustable | 70 mm |
| Tool Bore (Dia × Depth) | Ø50 × 65 mm |
| Main Motor (HP / RPM) | 10 / 1440 |
| Floor To Top Bolster (N) | 900 mm |
| Die Cushion Force (Optional) | 7 Ton |
| Die Cushion Area (Optional) | 250 × 250 mm |
| Die Cushion Stroke (Optional) | 70 mm |
